Video Microscope

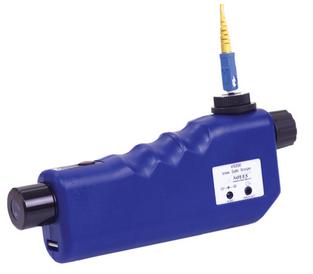

VS300 View Safe Video Microscope for Fiber Optic Connectors on Patch Cords Inspect patch cords with NOYES VS300 from AFL. Designed for field use,

the VS300 scope delivers a high quality end-face image at 400x magnification.Quickly identify scratches, dirt or other problems normally associated with poor network performance

Fact: A large percentage of network failures are caused by dirty or damaged end-faces on fiber optic connectors. Inspecting jumper end-faces prior to connection is critical to network performance. The VS300 scope provides a quality optical inspection tool at an affordable price.

Safety by design: the VS300 Utilizes a camera and micro display to provide an end-face image while eliminating the optical path to the technician’s eye. This ensures no harm in the case of inadvertent viewing of live fibers. *

Standard Features Include:
[•] Universal adapter cap mount that accepts a variety of NOYES thread-on style adapter caps (ordered separately) to ease inspection of many connector style.
[•] 2.5mm Universal Adapter Cap included for viewing FC, SC, ST connectors.
[•] A momentary power switch located on the top panel keeps one hand free for focusing.
[•] Auto time-out feature provides long battery life from standard 2 x AA Alkalines.
[•] Tri-Pod mount: For stationary work, the tri-pod mount allows the VS 300 to attach to any standard camera tri-pod.

:: Key Features ::

[•] Safety: The VS300 has no optical path to the user’s eye
[•] Ergonomic: Comfortable molded easy grip case
[•] 2.5 mm Universal Adapter included (accepts FC, ST, FC, etc.)
[•] View PC and Angled connector types including MPO/MTP
[•] NTSC Video Output

:: Applications ::

[•] Verify jumper ends are clean prior to connecting to network
[•] Inspect end-faces for scratches or pits
[•] Eliminate the most common network fault (bad connectors)
